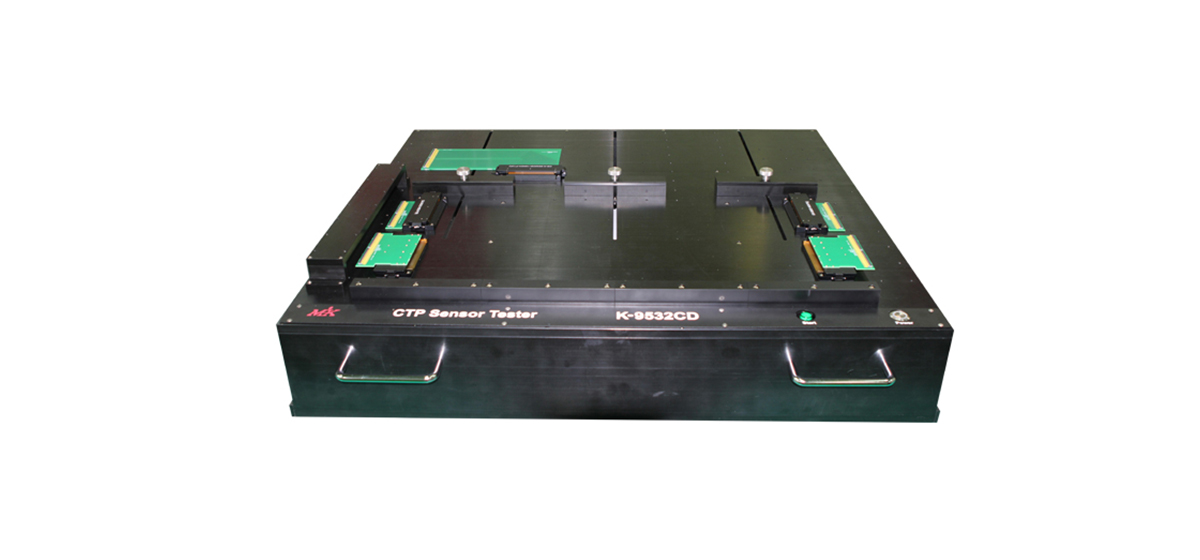

K-9532CD
产品介绍
CTP Sensor TesterTest for Touch Sensor Bonded FPCB, GG, GF2, GFF products
Test Channel: Max. 320CH (Tx 160CH, Rx 160CH)
Test Items: Self, Cross, Mutual, Loop, Insulation
Capacitance test range: 0.001pF-1000pF
Impedance test range: 1.0mΩ-20MΩ
Contact Block (Probe Pin)
Spec Edit, Display Pass/Fail results
Create Test Log data file
